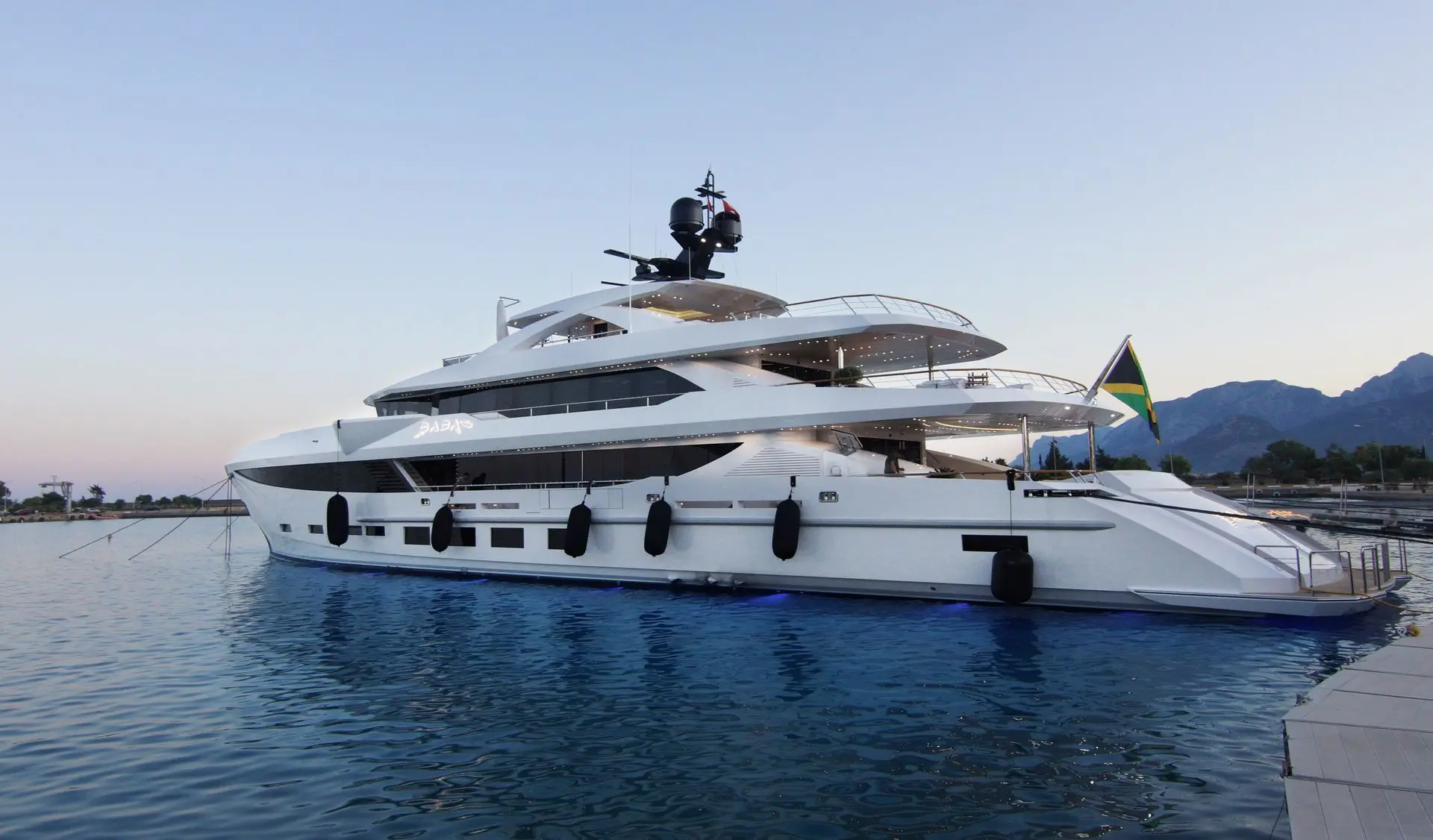

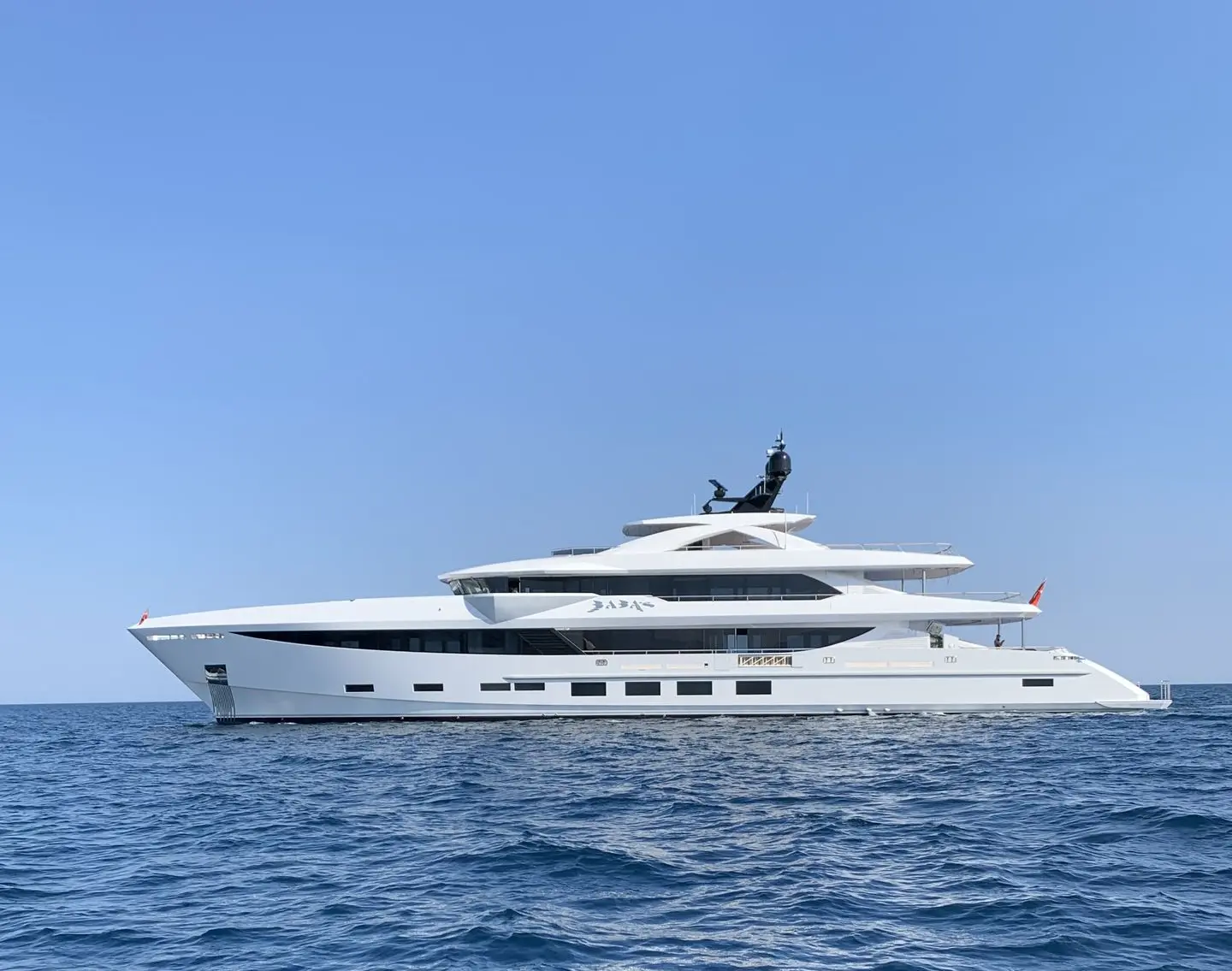

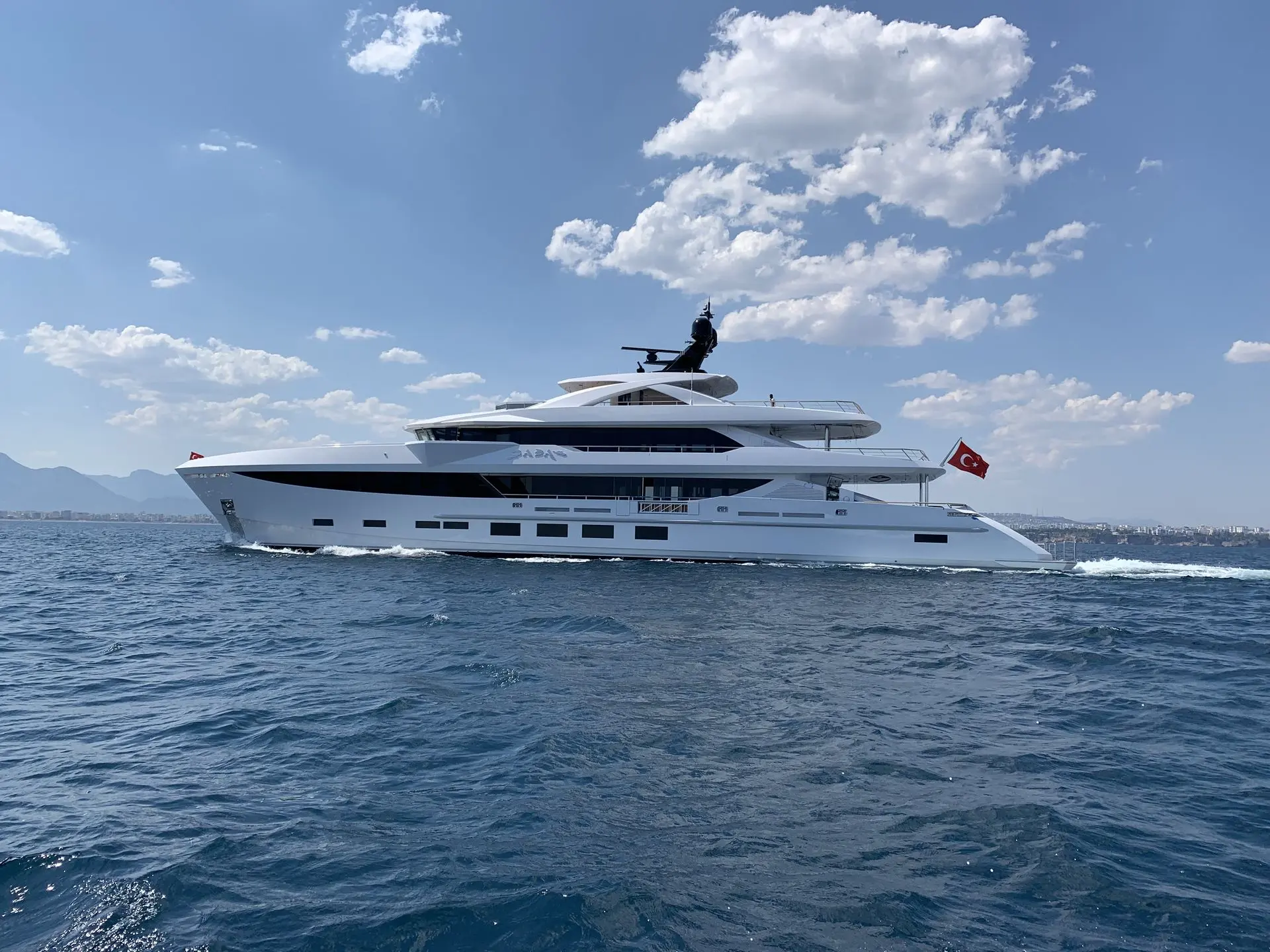

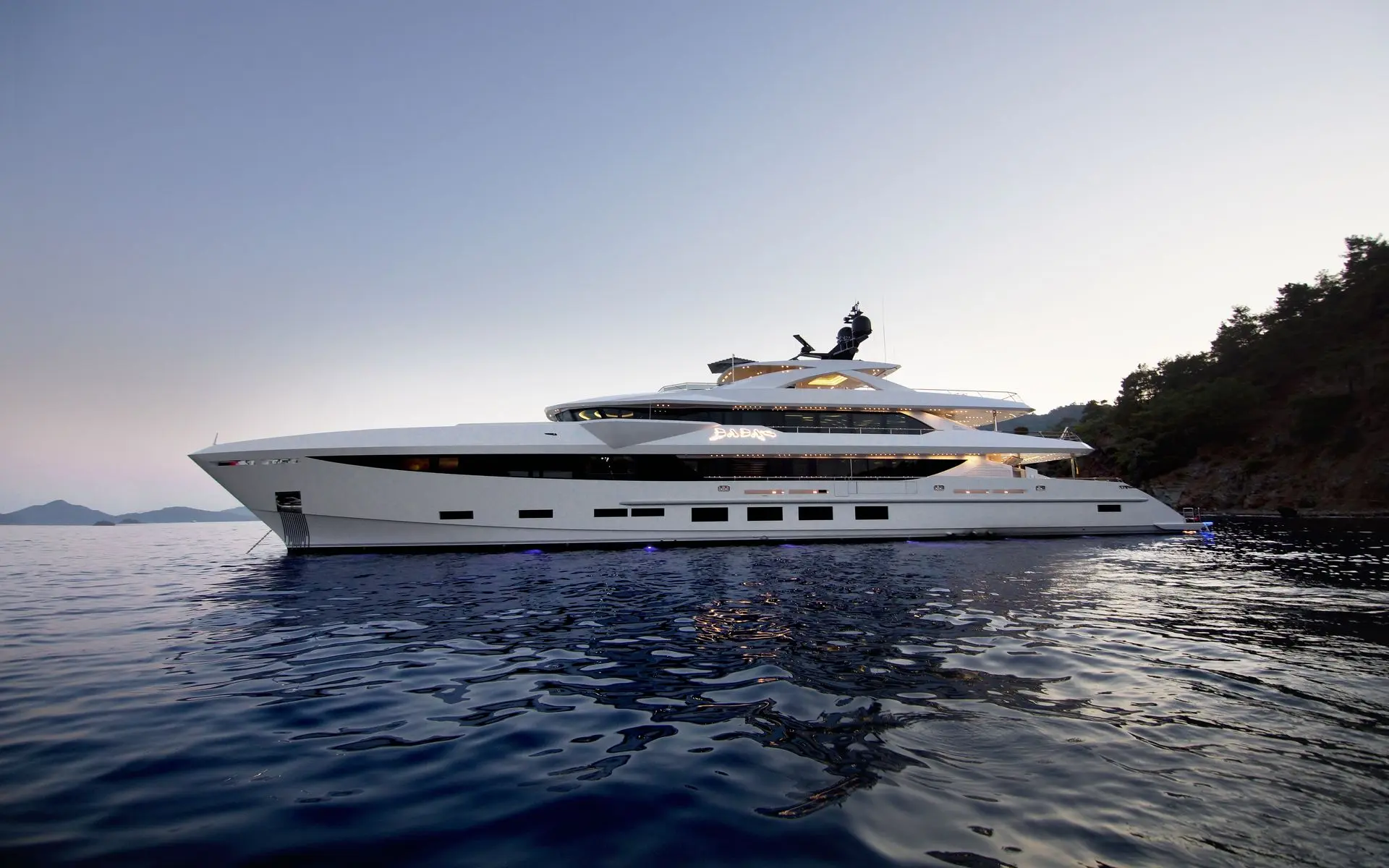

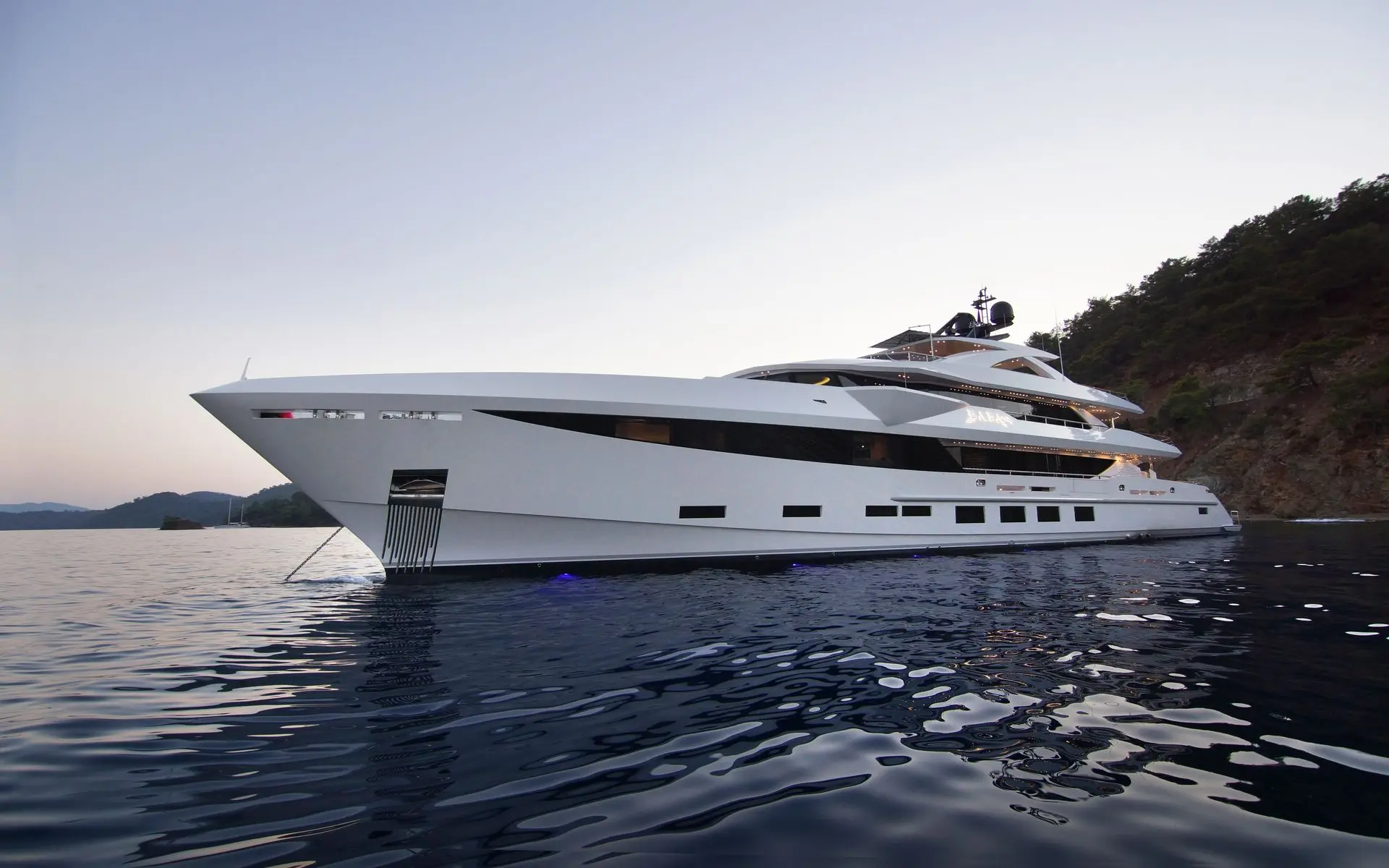

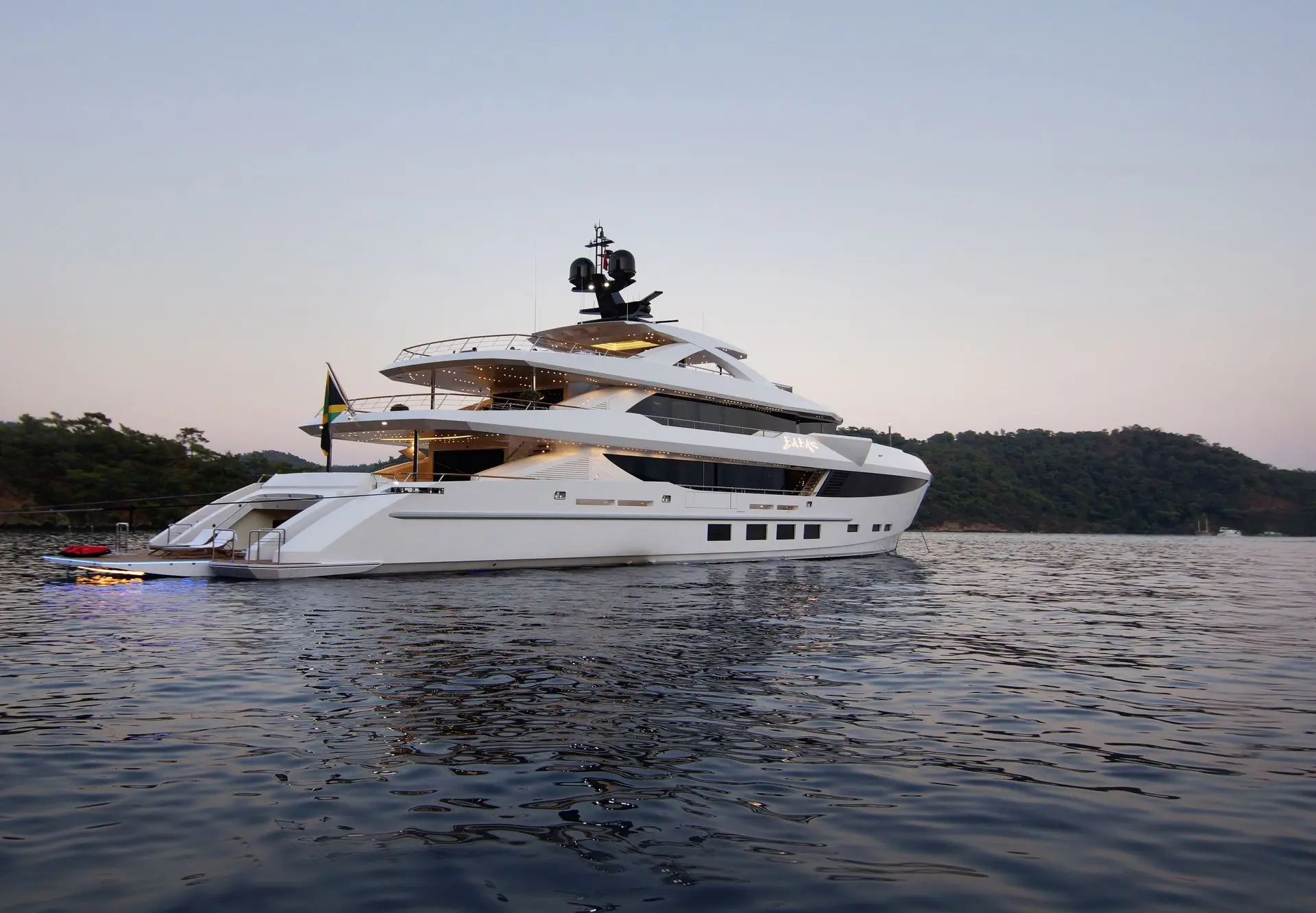

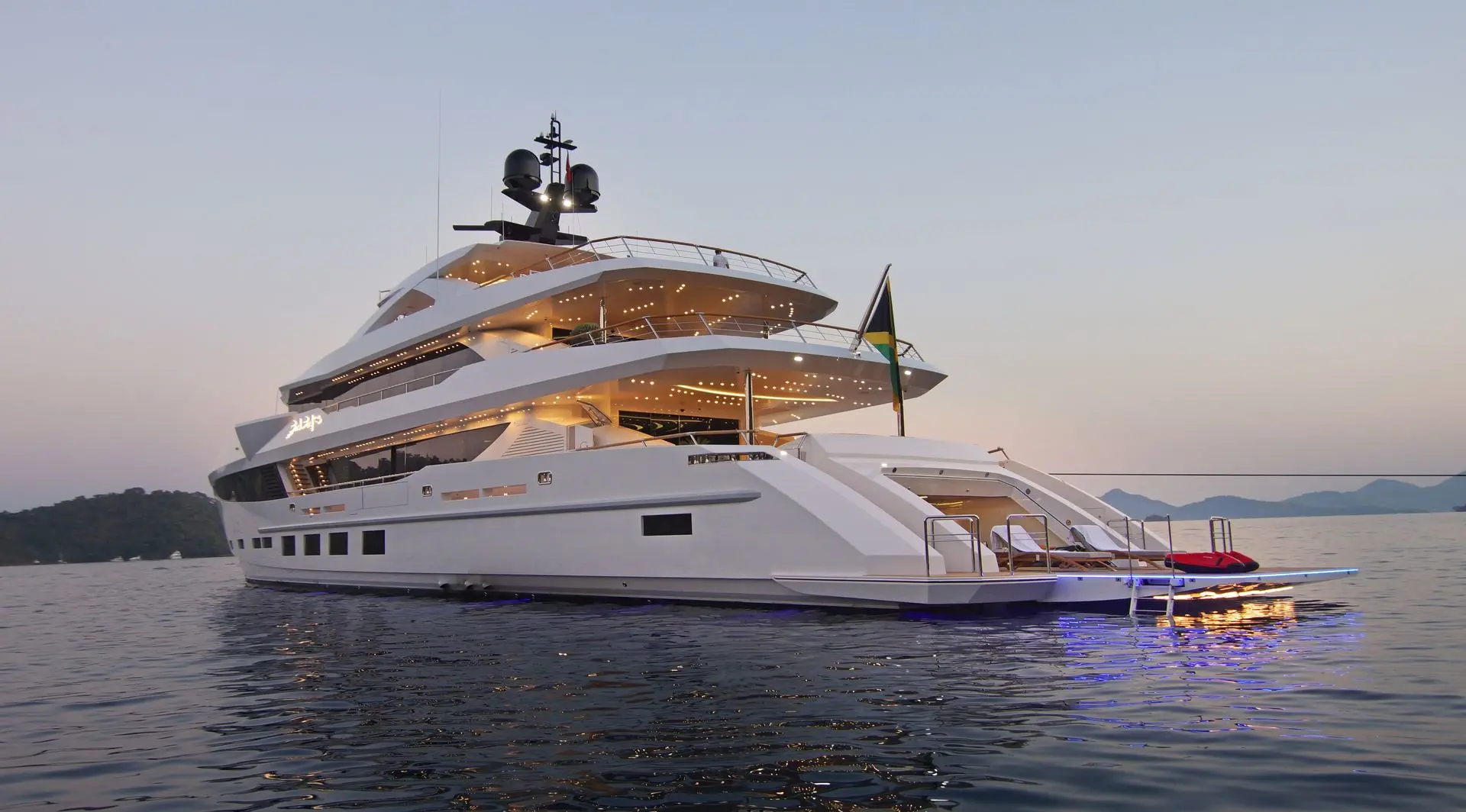

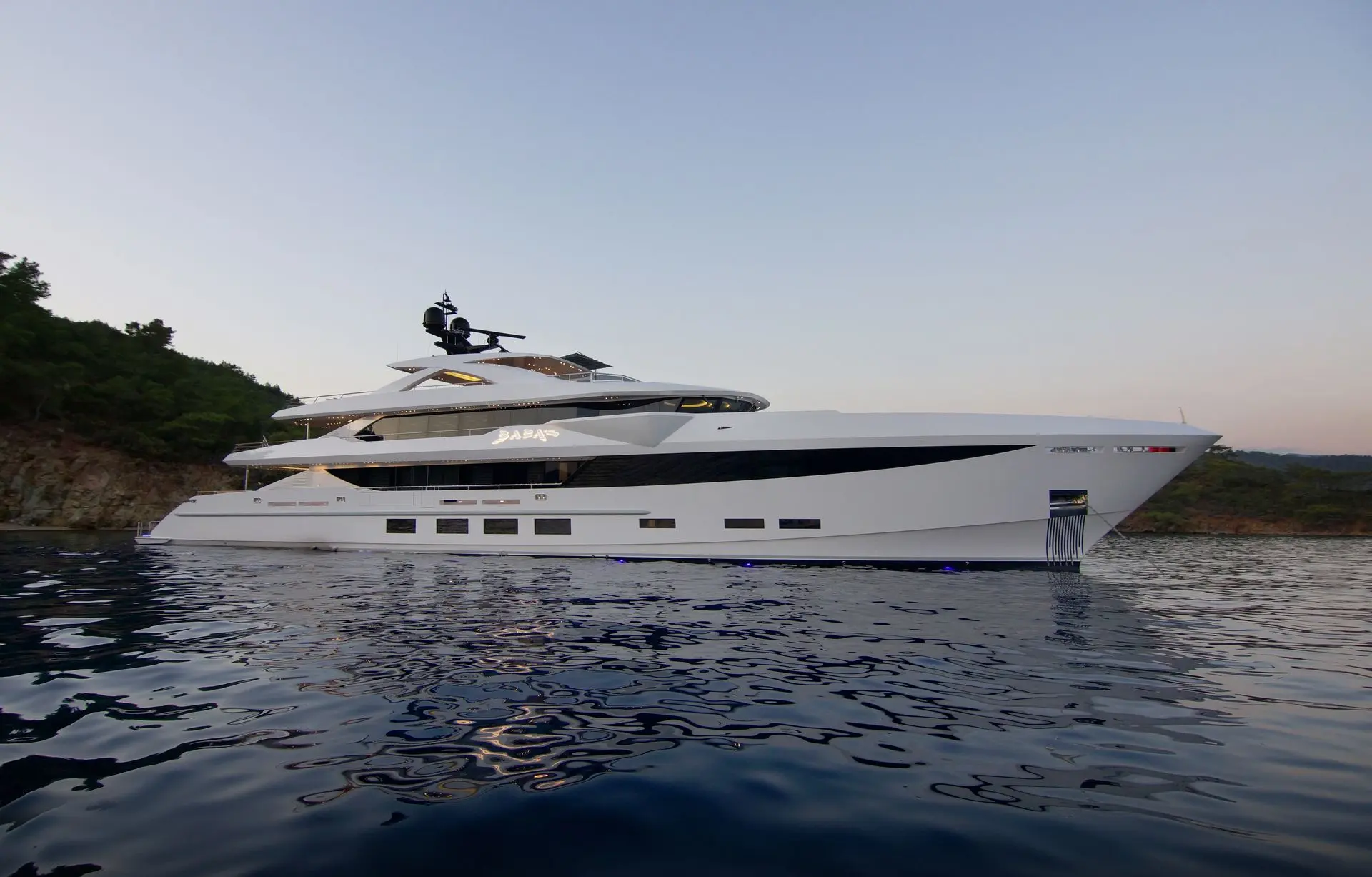

M/Y Baba's
Hargrave’s Owner Driven Yachts begins at 30 meters, where true customization takes shape. These vessels reflect deeper conversations and the priorities set by our owners. Every decision serves a purpose, and every yacht is a direct result of clear intent and close collaboration.
Specifications
LENGTH OVERALL (hull) - 186' - 0"
LENGTH WATERLINE - 161' - 0"
BEAM (max) - 33' - 0"
DRAFT - 8'- 0"
DISPLACEMENT (Lt Ship) -580.0 Metric Tons
DISPLACEMENT (Fl Load) -680.0 Metric Tons
HULL CONSTRUCTION - Steel
SUPERSTRUCTURE - Aluminum
MAIN DECK -Handlaid Burmese / Myanmar Teak
EXTERIOR PAINT SYSTEM -Awlgrip
CLASSIFICATION - Lloyds Register
GROSS TONNAGE - 880 GT
MAIN ENGINES -CATERPILLAR 3512 (2)
Rating IMO III SCR SYSTEM Marine Diesel
POWER - 2375 Bhp @ 1800 RPM
GEARBOX - ZF 5360A - 3.47:1
EXHAUST SYTEM - Soundown
SPEED ( Maximum / Cruise ) - 17 knots / 12 knots
RANGE - 3700 NM @ 50% MCR
BOW THRUSTER - Naiad Model 30 – 188 Hp
STERN THRUSTER - Naiad Model 24 – 100 Hp
STABILIZERS - Naiad 925 - 5.01 M Fins (4) – At Rest Stabilization
WINDLASSES - Maxwell (2)Hydraulic
CAPSTANS - Maxwell (3)Hydraulic
FUEL CAPACITY -25000 Gallons
FRESH WATER CAPACITY-2500 Gallons
BLACK WATER CAPACITY-2000 Gallons
GRAY WATER CAPACITY-2000 Gallons
WATERMAKER - 3600 (2) Gallons / Day
SEWAGE TREATMENT-2000 Gallons - Headhunter
BILGE WATER- 400Gallons
SLUDGE- 400Gallons
LUBE OIL- 400Gallons
WATER MIST TANK- 1,580Gallons
ELECTRICAL SYSTEM - 480/ 240/ 120 VAC 3Ph - 60 Hz & 24 VDC
GENERATORS- (2) CATERPILLAR 7.1 118 KW
HARBOR GENERATOR - (1) CATERPILLAR 4.4 75 KW
EMERGENCY GENERATOR - (1) CATERPILLAR 4.4 95 KW
SHORE POWER CONVERTER - (1) ASEA 105 Kva
BATTERIES & CHARGERS-Mastervolt
