Signature E-Series Tri-Deck by Gabrielle Teruzzi 105-132ft (32m-40m) with Veranda aft deck and Beach Club options

The Signature E-Series Tri-Deck by Teruzzi applies the design language of Gabriele Teruzzi to Hargrave's proven E-Series Tri-Deck platform. The hull form and core engineering below the tank deck remain unchanged: the same Jack Sarin-engineered foundation carried across more than 30 E-Series yachts built and in service, developed for volume, stability, and long-range use.

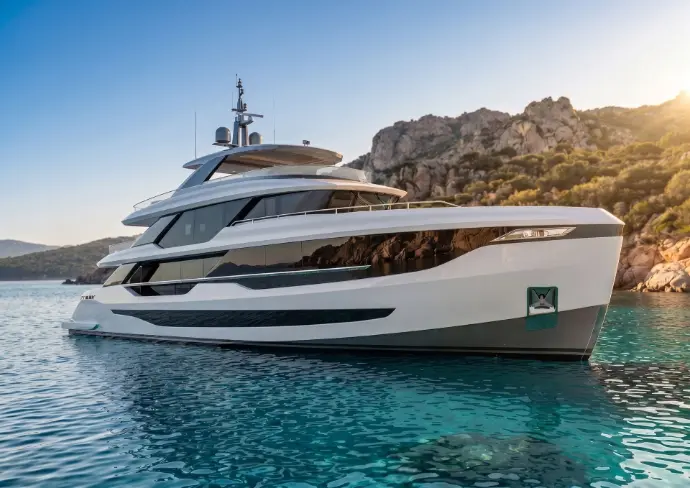

Above the tank deck, the yacht takes on Teruzzi's signature direction. The general arrangement follows Hargrave's established standards, minimum seven-foot ceiling heights, generous cabin volumes, and layouts intended for extended stays onboard, while the exterior profile and interior treatment reflect a distinct contemporary vision.

The design is offered in two configurations. A Veranda Deck option extends the living space outboard for sheltered exterior use, or a Beach Club option opens the aft and side areas to the water in place of the veranda deck. Each configuration reflects a different way of living aboard, and both are built on the same underlying platform.

Presented here as a concept, the Signature E-Series Tri-Deck by Teruzzi remains fully Owner-Driven. The design can be developed as shown, adapted in collaboration with the studio, or taken in an entirely individual direction, always anchored to the platform's engineering and buildability.

TO MEET GABRIELE TERUZZI CLICK HERE

  Main Characteristics

ACCOMODATION                                           10 GUESTS + 7 CREW

CLASSIFICATION                                            Rina Pleasure Yachts (Private or MCA Compliant)

LENGTH OVER ALL                                        105ft (32m)-132ft (40) meters

LENGTH WATERLINE                                    32-38eters

BEAM                                                                 7-9 meters

DRAFT                                                                6.5ft -7.5ft (1.98m- 2.3m)

DISPLACEMENT (Light Ship)                       180 -200Tonnes

DISPLACEMENT (Fully loaded)                   210-230 Tonnes

GROSS TONNAGE                                           270 GT-400GT (Approx.)

SPEED                                                                20-25 Knots  (Depending the Engine Package and length)



PROPULSION

MAIN ENGINES:  2 x CAT C32 2000-2200HP (Optional MTU 16V2000 M96)

GEARBOX : ZF

ENGINE CONTROL: GLENDINING ( 1 main + 2 remote stations plus Cord control remote Control)

GENERATORS: 2X  CAT C4.4, 65-75 KW

SHAFT PROPELLER: CJR (UK)  4,5” MARINEMET 25 Shaft  / 5 Blades Class S Propellers

ELECTRIC SYSTEM: 120/ 208 / 220 . 380 VAC 3P 50/60Hz  Main Service

                               24VDC Service and Engine Start System

                               ASEA 2 x 75 kVA Shore Power Converter

                               2x Glendinning CM9 Cable Master

TANK CAPACITY  Varies depending the size. Tankage capacity below is for the 38m

Diesel Oil: 30000Lt / 8000 Gallons

Fresh Water: 4.000 Lt / 1.000 Gallons

Black Water: 2.000 Lt/ 500 Gallons

GreyWater : 2.700 Lt / 700 Gallons



BUILD / CONSTRUCTION

HULL / SUPERSTRUCTURE : CARBON RAINFORCED E-GLASS - EPOXY COMPOSITE SANDWICH

OPEN DECK: HANDLAID BURMESE / MYANMAR TEAK OR NON SKID PAINT

PAINT SYSTEM: AWLGRIP

Bow thruster/ Stern Thruster: Sleipner or Naiad

Stabilizers: Sleipner or Naiad at Rest Stabilizer with Power Pack (CMC Stabilizers option)

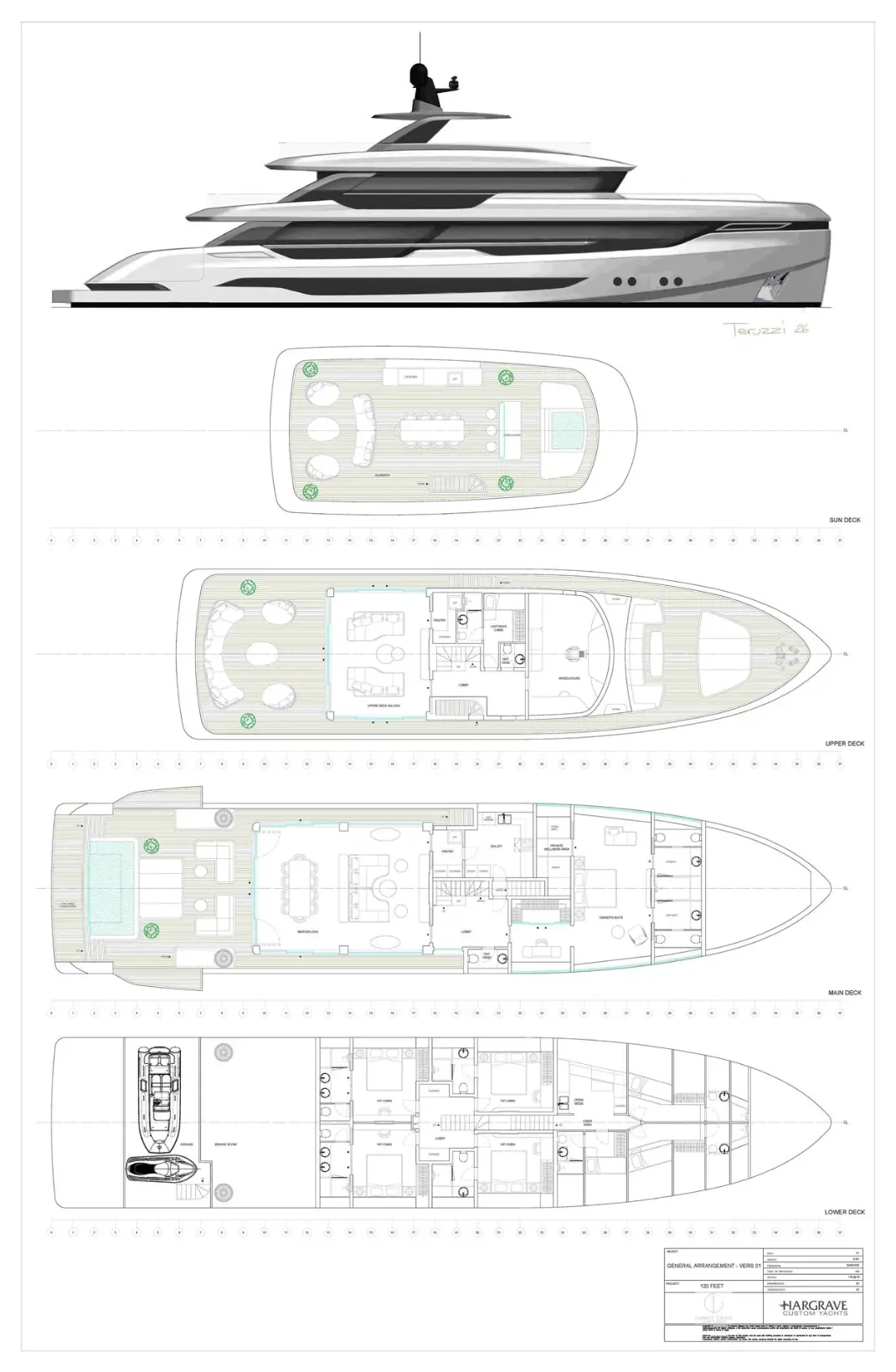

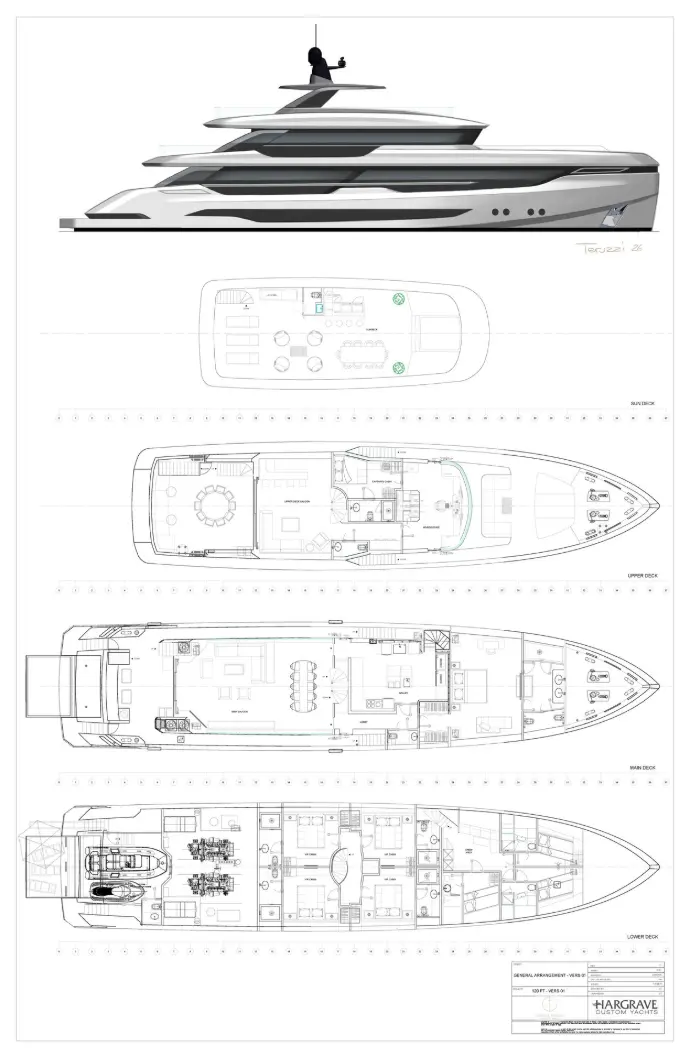

  General Arrangement Plans of: 120 ft with Veranda Deck and 125ft with Central Staircase and Beach Club
